RFID Reader Module
-
-

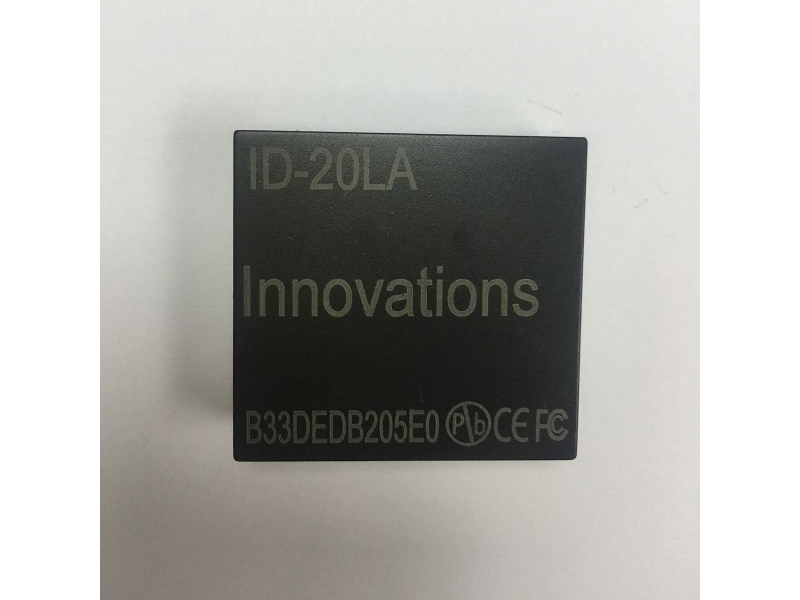

ID20LA 125Khz RFID Reader Module
ID20-LA is small footprint 2.8-5.0volt reader modules that support ASCII, Wiegand26 and Magnetic ABA Track2 data formats. The modules are pin and function compatible with the ID2/12/20 series.
Parameter | ID-20LA |
Frequency | 125 kHz nominal Card Format EM 4001 or compatible |
Read Range ID3 | Up to 30 using suitable antenna using ID-Innovations clamshell card @5v |
Read Range ID12 | Up to 12cm using ISO card, up to 18cm using ID-Innovations clamshell card @5v |
Read Range ID20 | Up to 18cm using ISO card, up to 25cm using ID-Innovations clamshell card @5v |
Encoding | Manchester 64-bit, modulus 64 |
Power Requirement | +2.8 VDC thru +5 VDC @ 35mA ID-12LA, 45mA ID-20LA |
RF I/O Output Current | +/- 200mA PKPK |
Certification | CE, C-TICK, ROHS, FCC |
