RFID Antenna

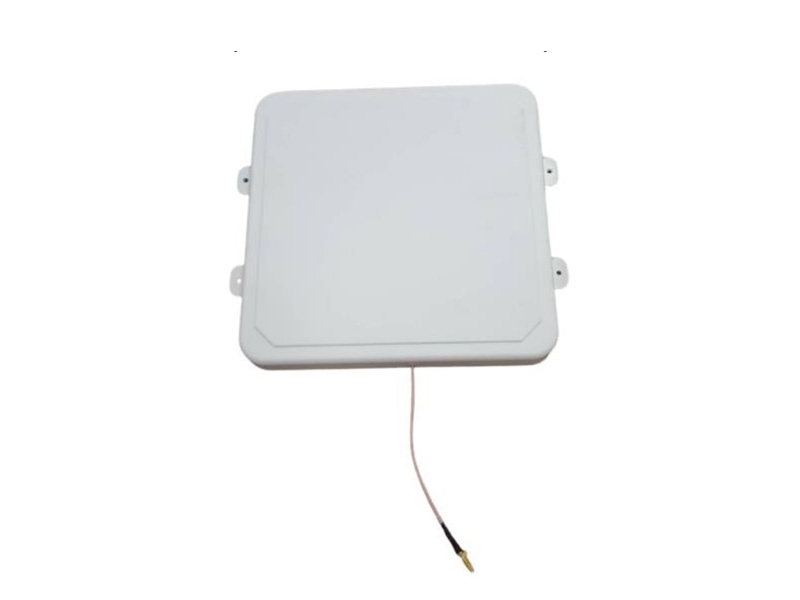

HLA-BR50A-CR UHF RFID Antenna

Functions and characteristics of the product: Electrical performance: General-purpose antennas for UHF band RFID applications have high gain, low dwelling waves Characteristics such as axis width. Mechanical properties: beautiful appearance, ultra-thin and waterproof structure design, excellent workmanship, simple installation, with the country The use of various models of UHF card readers inside and outside can maximize the performance of the card reader Wave it out. Main uses and scope of application It can be easily applied to RFID fields in UHF bands such as access control warehouses, unmanned retail cabinets, and library files.

Performance metrics

Frequency range860MHz~960MHz
The voltage stationed in Bobby≤1.3:1
Benefits8dBic
H face HPBW75°
E face HPBW75°
PolarizationPolarization
Relative humidity5%~95%
Input impedance50Ω
connector typeSMA-K
product info
dimension249 mm×219 mm×23 mm
weight400 g
Materialplastic
color
white
protection levelIP67
Operating temperature-40℃~+ 80℃
stored temperature-40℃~+ 80℃

PDFdownload HLA-BR50A-CR.pdf
