產品介紹

金屬標籤

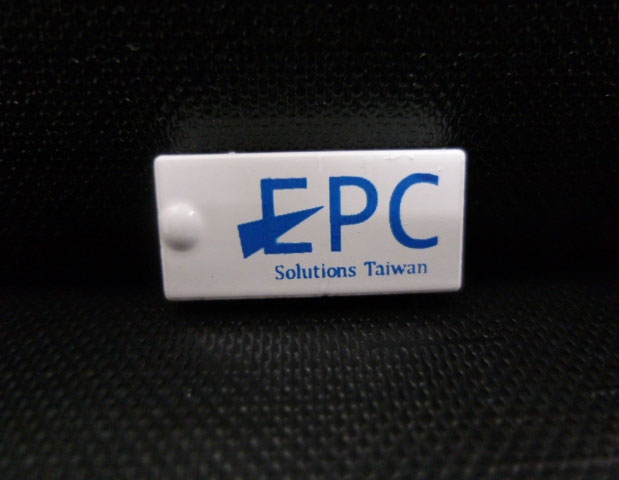

HL-C-1909A RFID金屬標籤

  • 材質:陶瓷
  • 尺寸:19*9*3mm
  • Metal UHF tag
  • on Aluminum foil and Aluminum material and on any metal
  • High performance reading range.
  • Available in high-yield volume with stable process.

產品說明

Protocol & Memory
  • Protocol: EPC global C1G2/ISO 180000-6C
  • Mode of operation: Passive
  • Memory (Alien H3):
    32 bits kill passwords
    32 bits access passwords
    96 bits EPC Number
    64 bits UID
    512 bits USER Memory


Structure
  • Frequency range: Global (860-960MHZ)
  • Dimensions: 19x9x3mm
  • Reading range: on metal over 3m (based on fixed reader)
  • Operating temperature: -40C to +150C (centigrade)
  • Storage temperature: -40C to +150C (centigrade)
  • Ingress Protection: IP68
  • Shock and Vibration: MIL STD 810-F
  • Materia: Ceramic


Application :Inventory management
  • Warehouse * Logistics management
  • Product tracking/control management:
    l  Instrument management
    l  Property management
    l  tooling management
