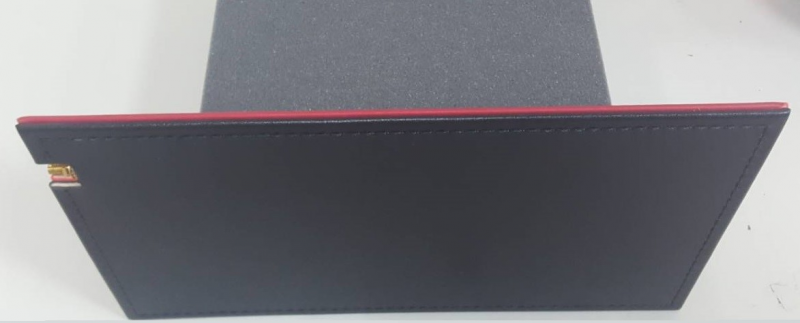

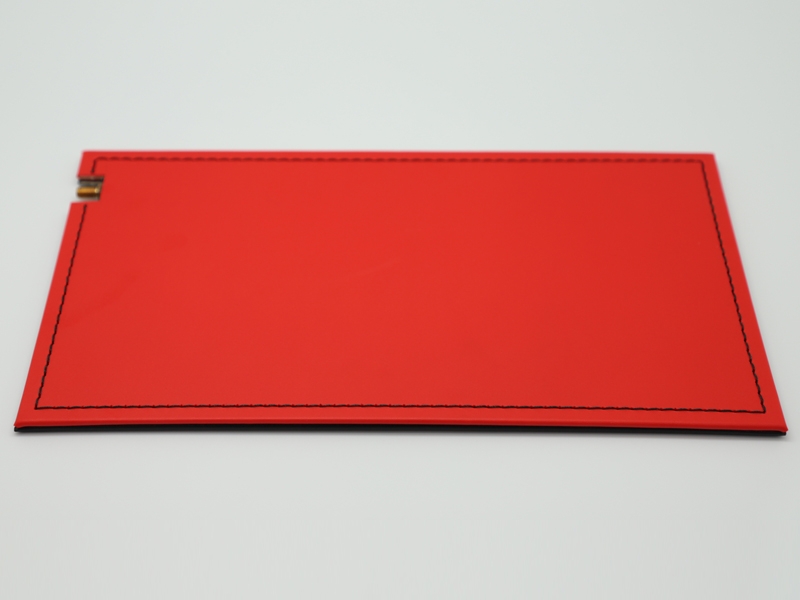

HLA-ST3318 RFID UHF Antenna
This antenna has a high performance, worldwide, Near Field antenna for use in demanding application Double-color fashion design .
產品說明
Specifications:
Model Number | HLA-ST3318 |
Frequency | 902MHz – 928MHz |
Maximum VSWR | 1.2:1 |
Polarization | Near Field |
Antenna Gain | <0dBi |
Input Impedance | 50 ohms |
Weight | 60 g |
Mechanical Size | (L)330 mm * (W)180 mm * (D)12 mm |
Antenna Connection | SMA Fe-Male |
Operating Temp. | -25oC to 70oC |
Cable | Depends on user’s demand |
Double Color design
